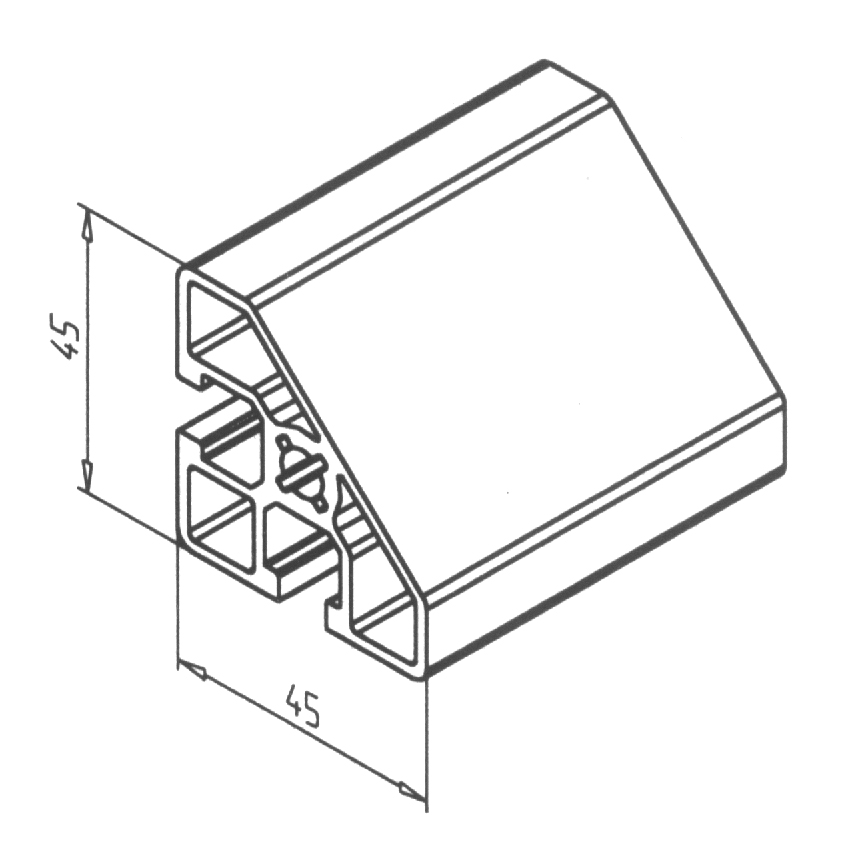

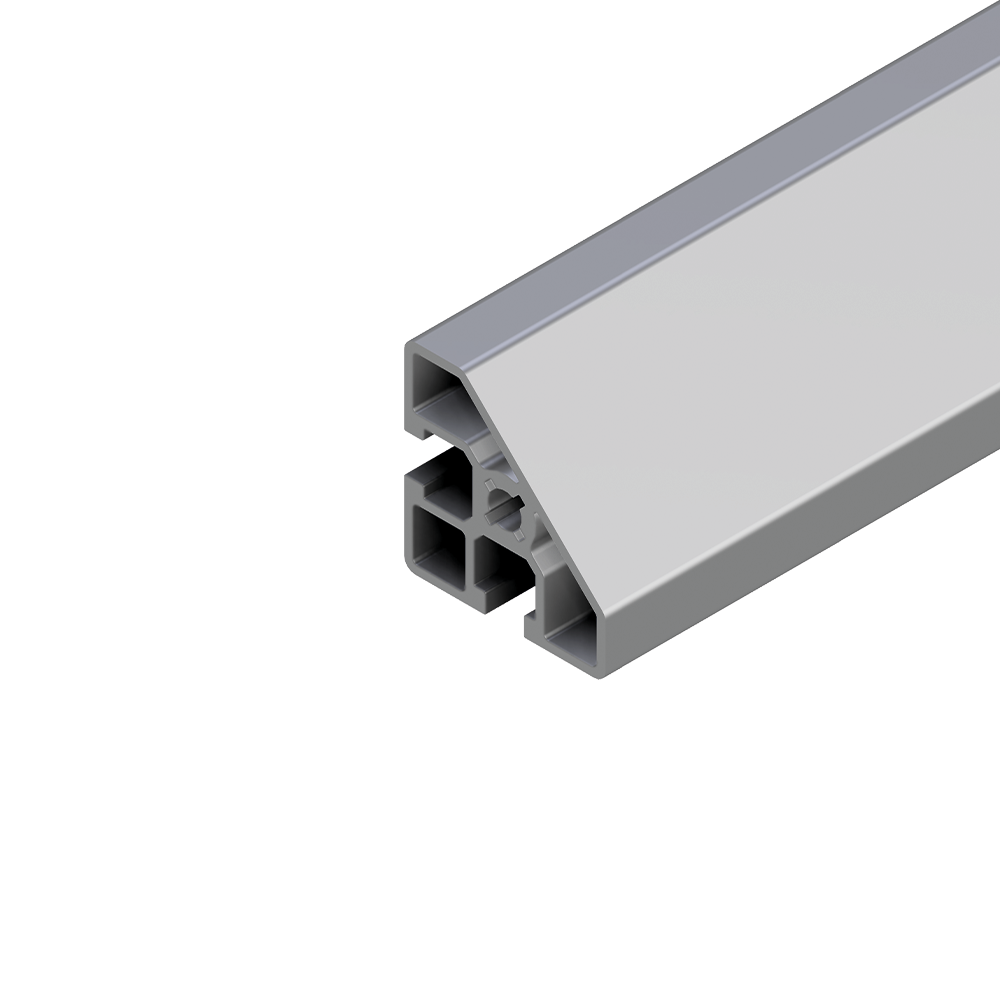

Profile 45/45°

Article Nr. 20.1029/0

Production length 6m (price advantage for packing unit)

6m (piece)

48m (packing unit)

8x6m

48m (packing unit)
cut in half

16x3m

Configure cutting (up to 6m)

Length L (10 - 6000)

Quantity

Comment

Questions about the product / Contact Generate datasheet

Techn. Data / Items supplied

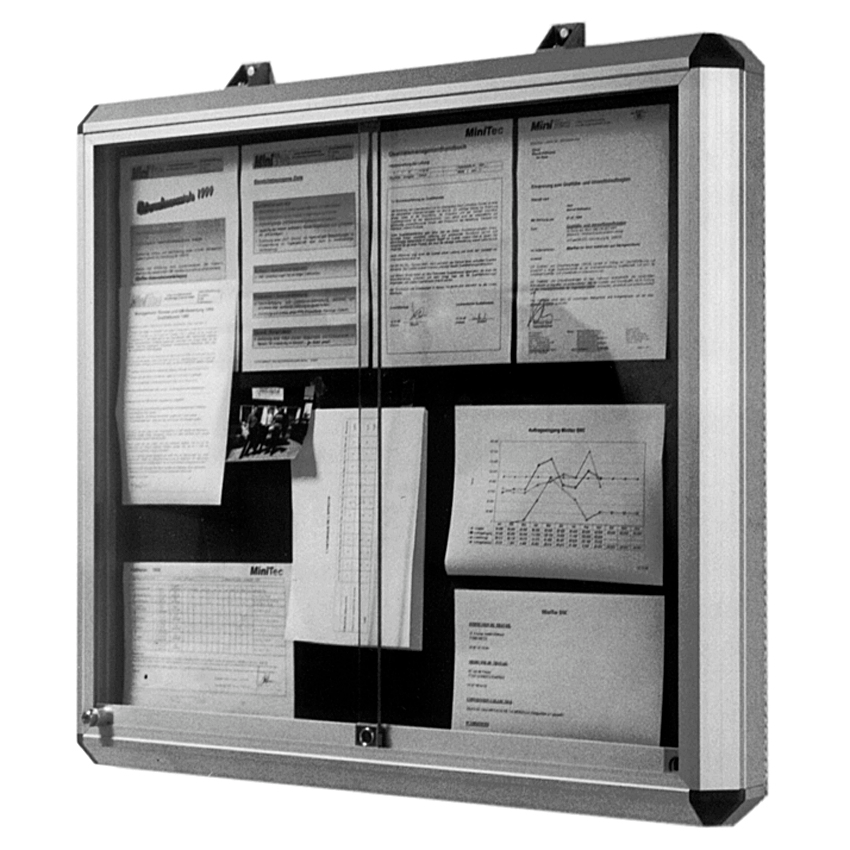

Applications

Assembly

Aluminium, extruded, anodized E6/EV1
I_x = 8.626 cm⁴
I_y = 8.626 cm⁴
w_x = 3.315 cm³
w_y = 3.315 cm³
IT = 10.580 cm⁴
Weight = 1.443 kg/m
Bar length = 6 m
Packing unit = 48 m

Fits With

Power-lock fastener 45 SF

Power-lock fastener 45 - stainless

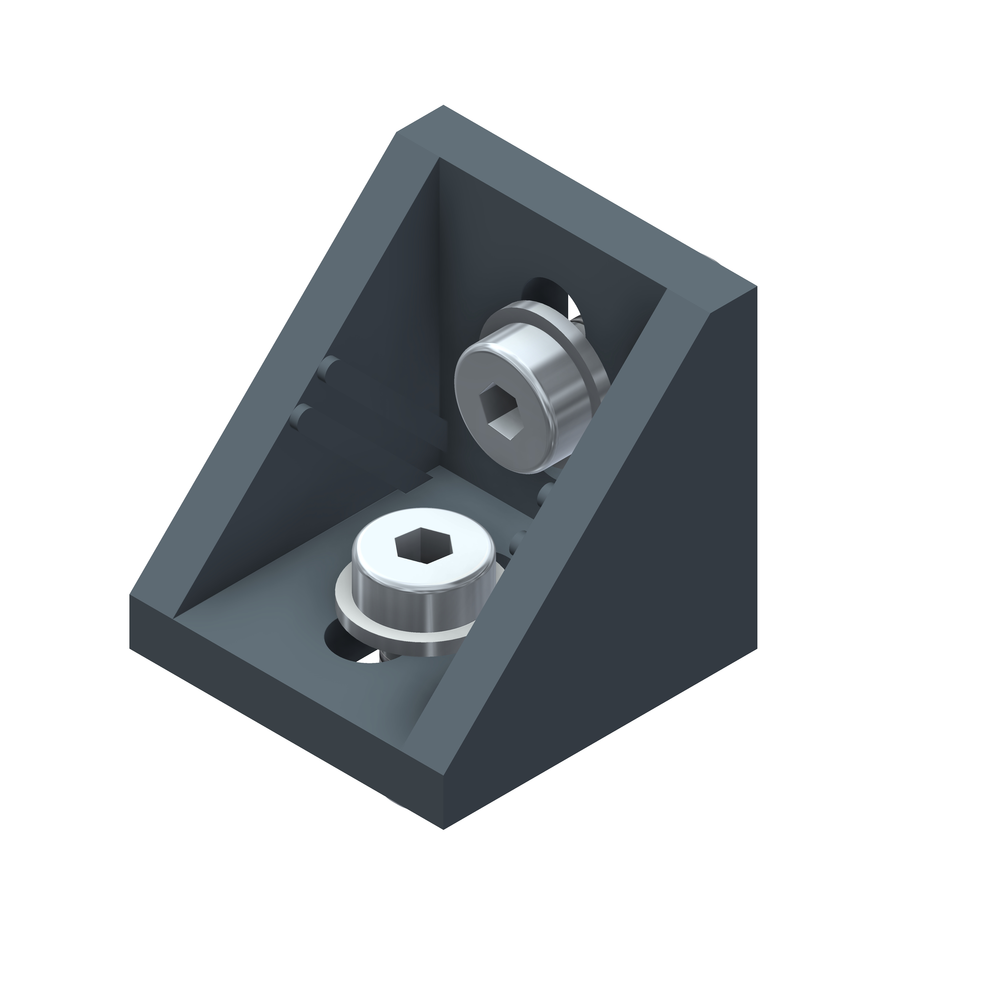

Mounting angle 45 GD-Z
